ALPINESTARS (ROAD)

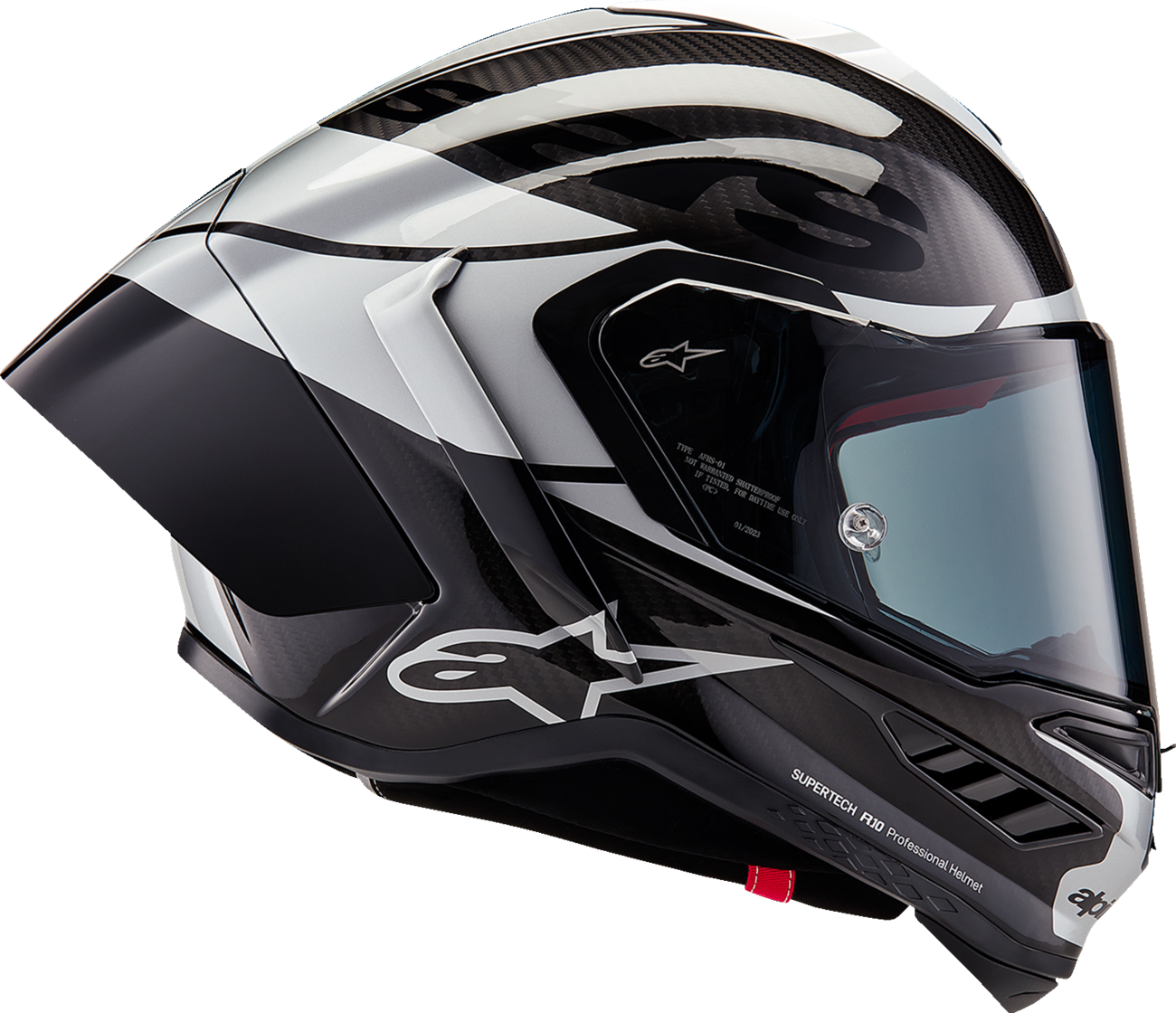

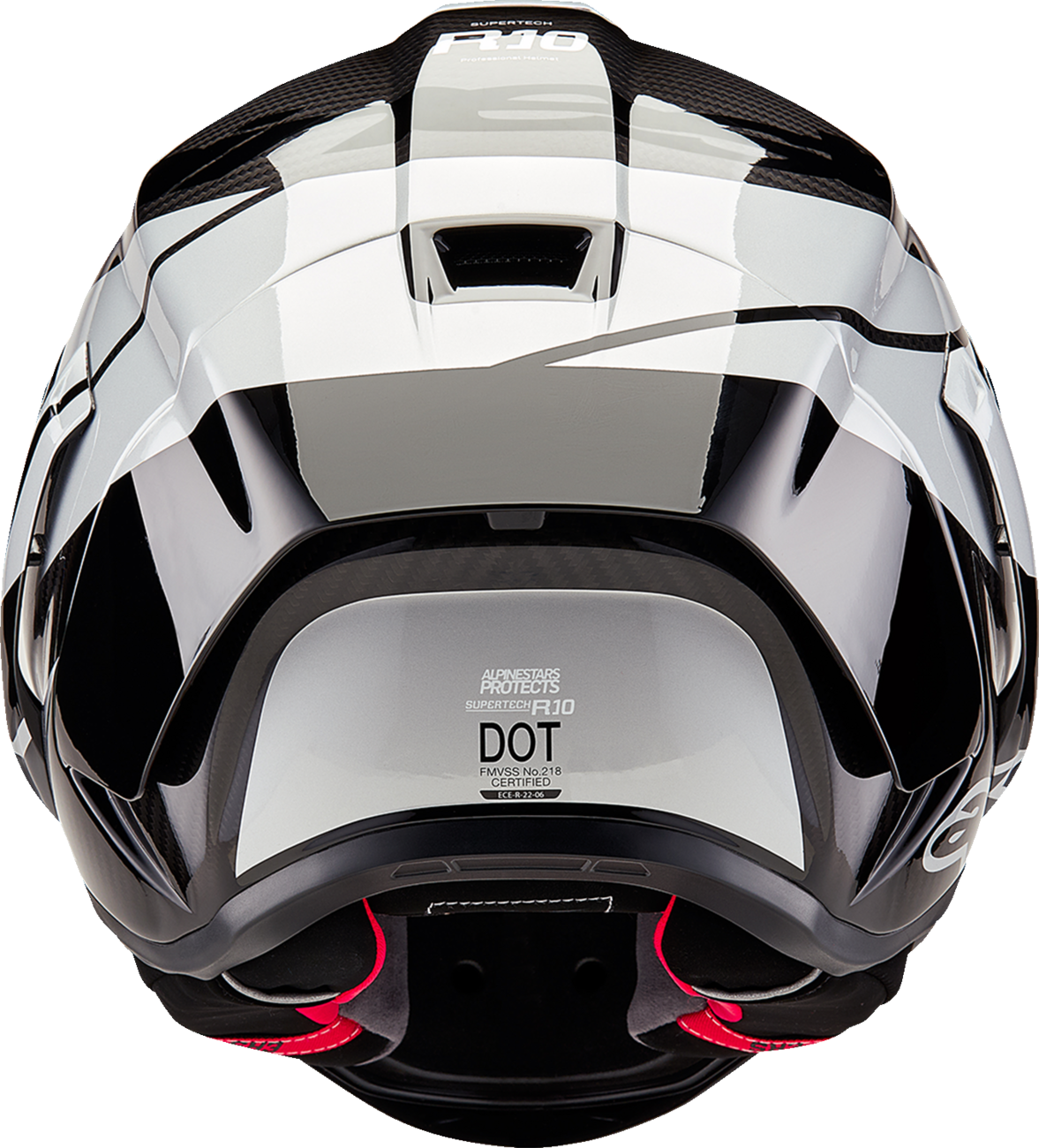

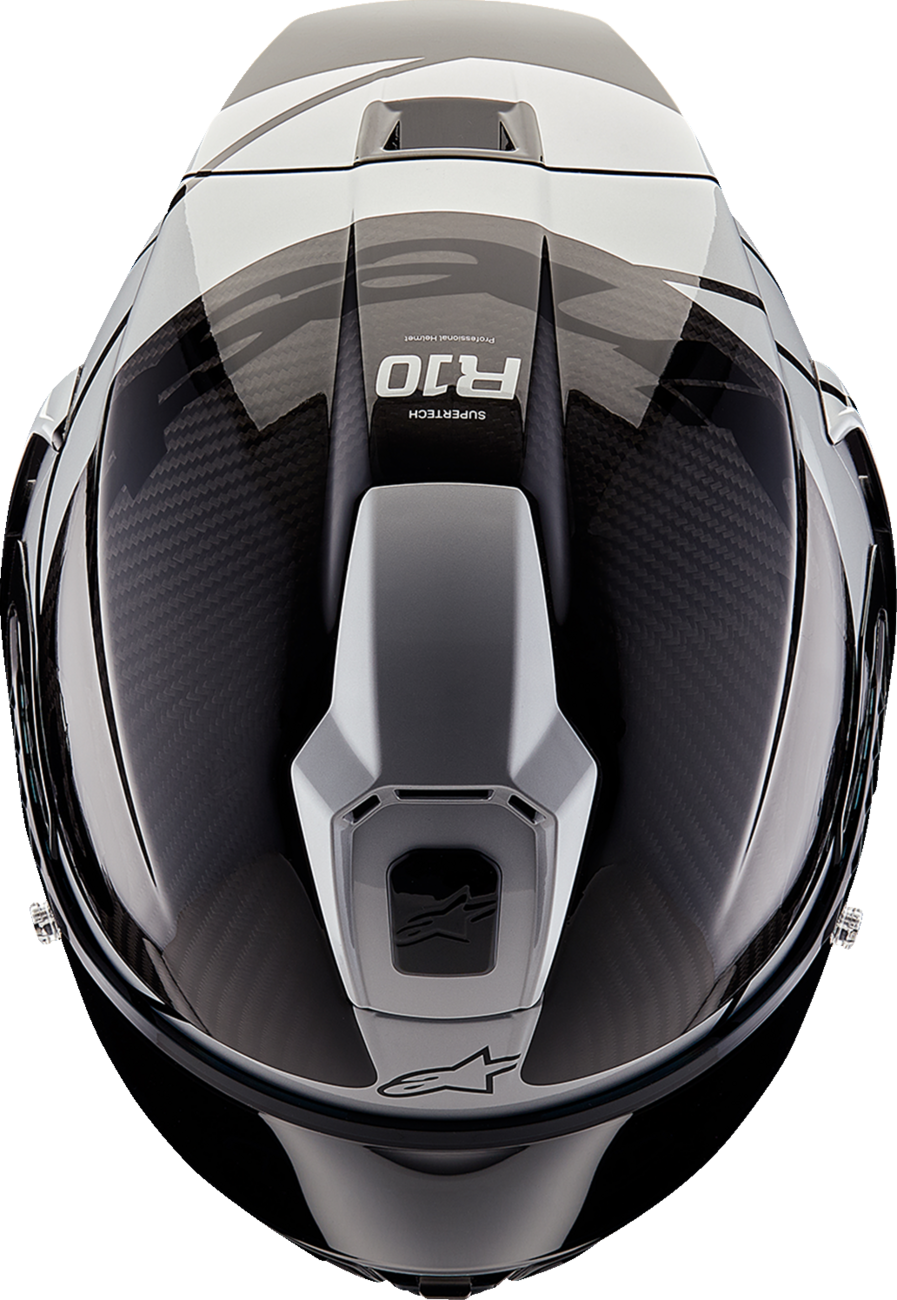

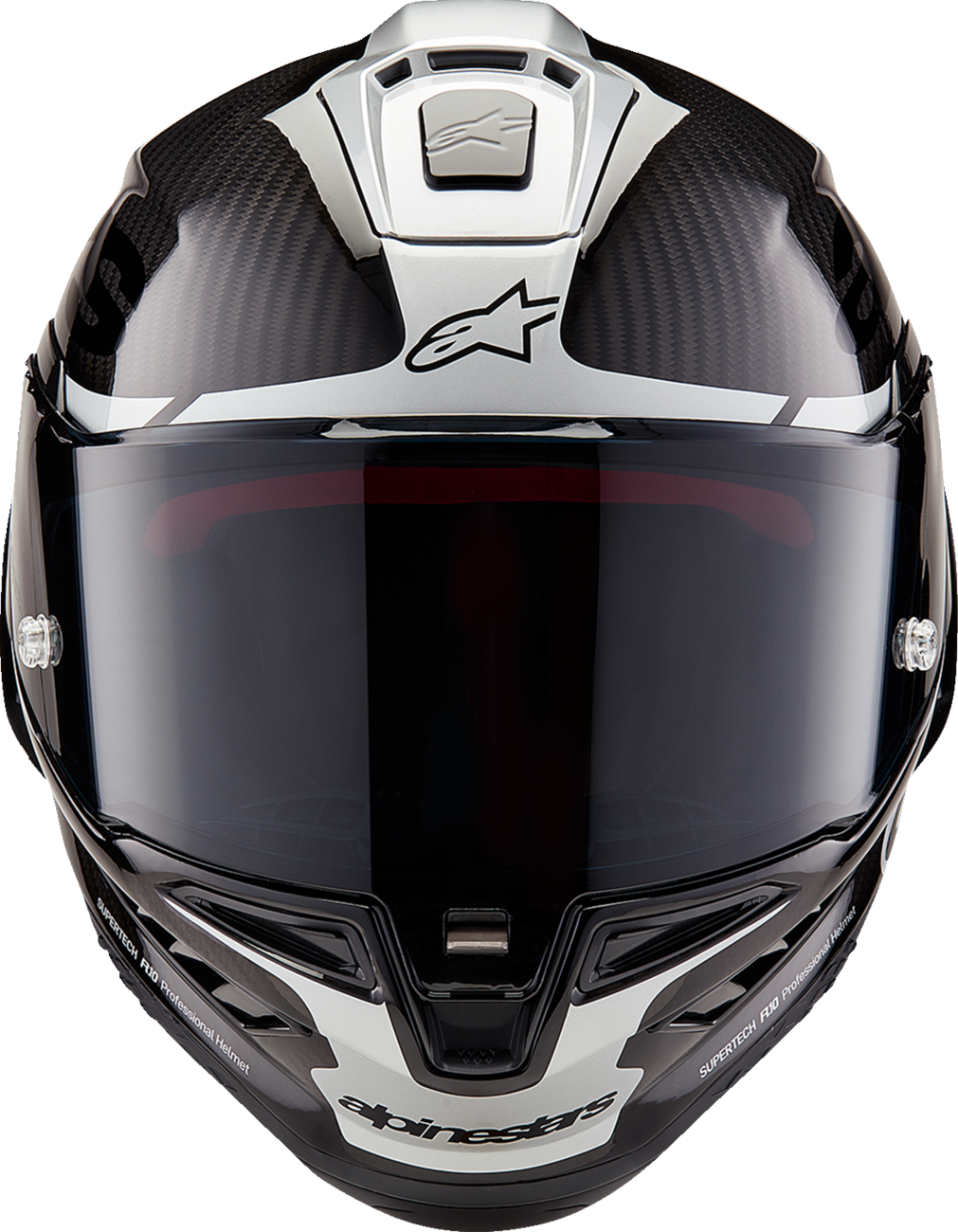

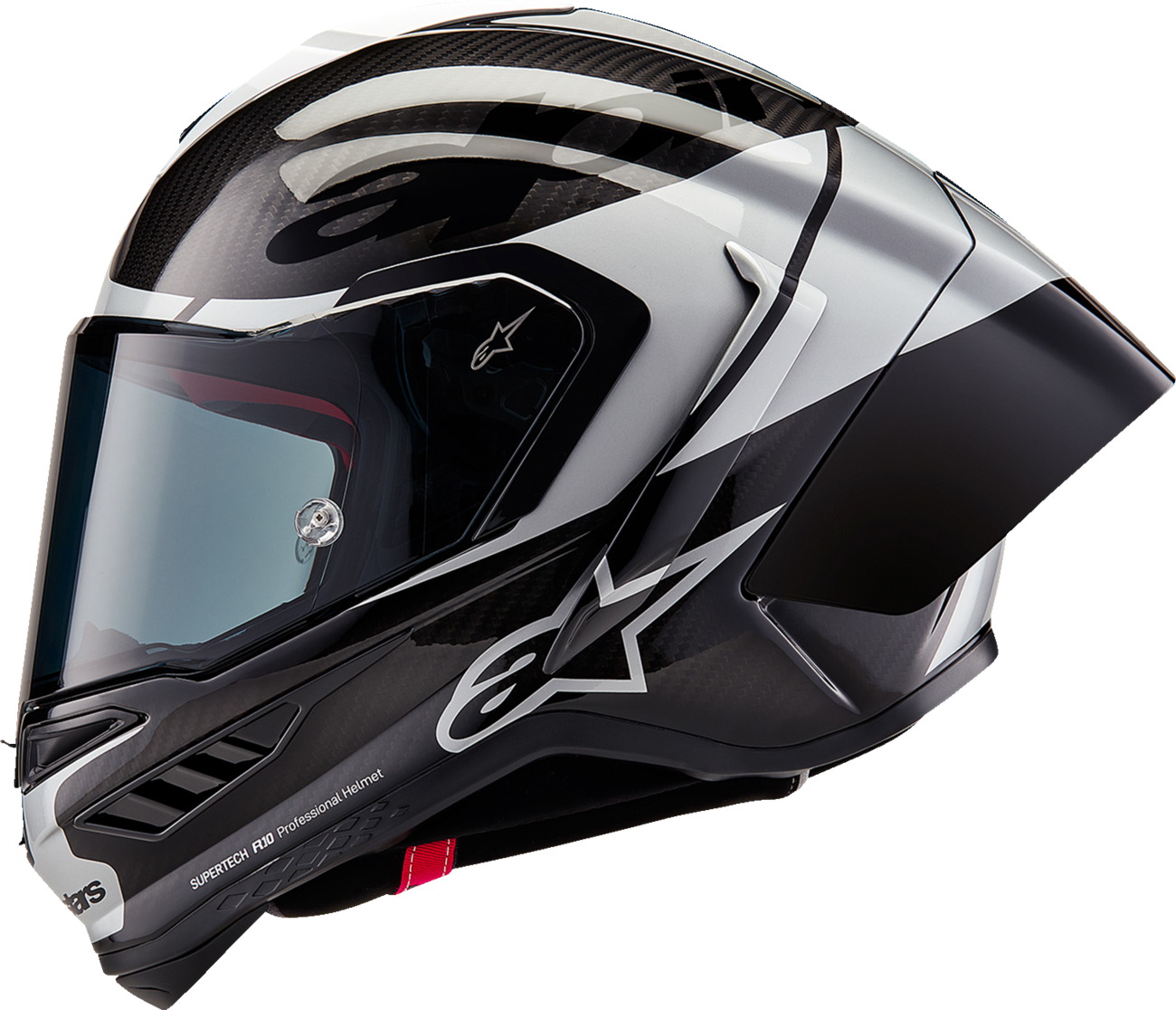

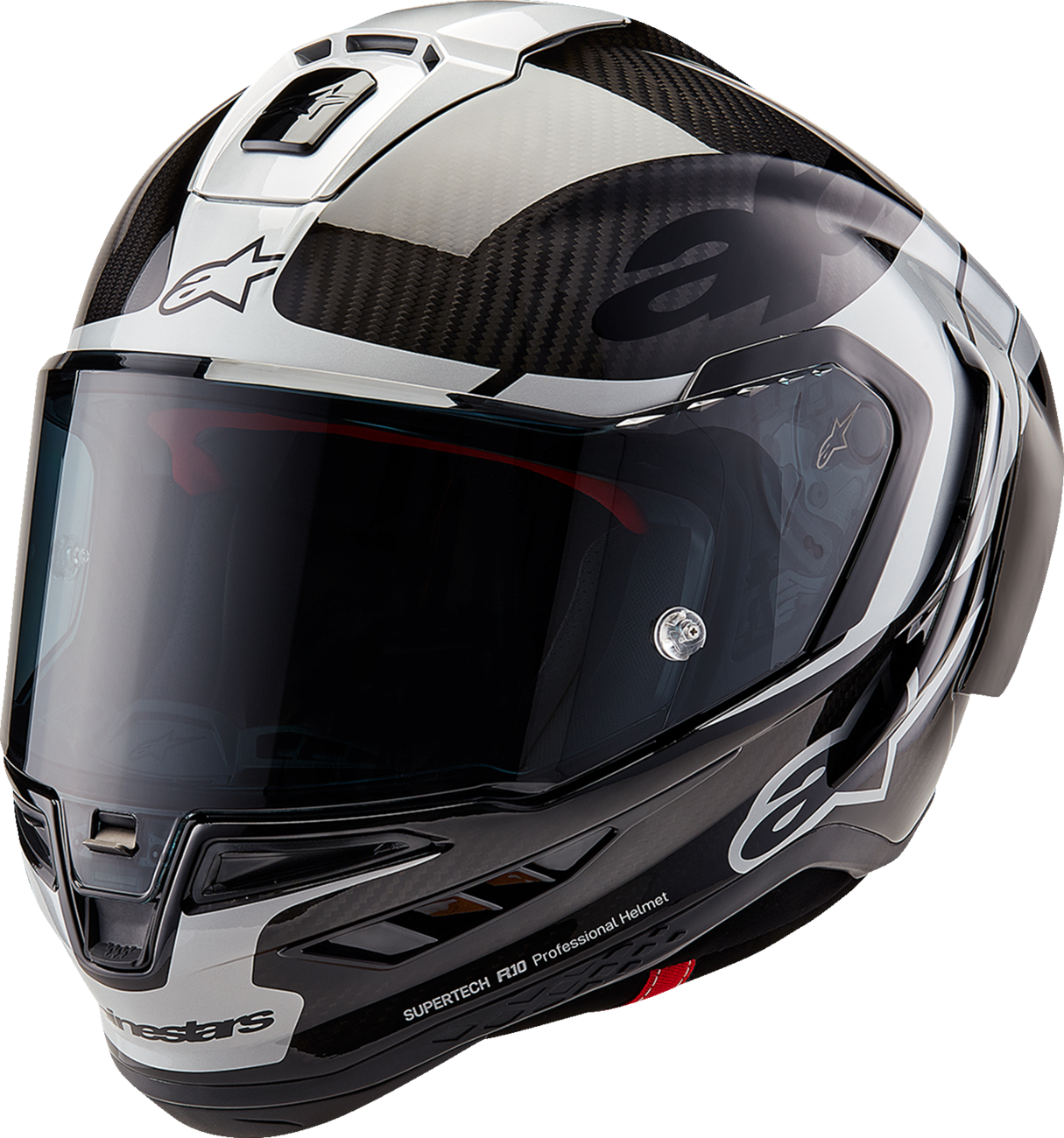

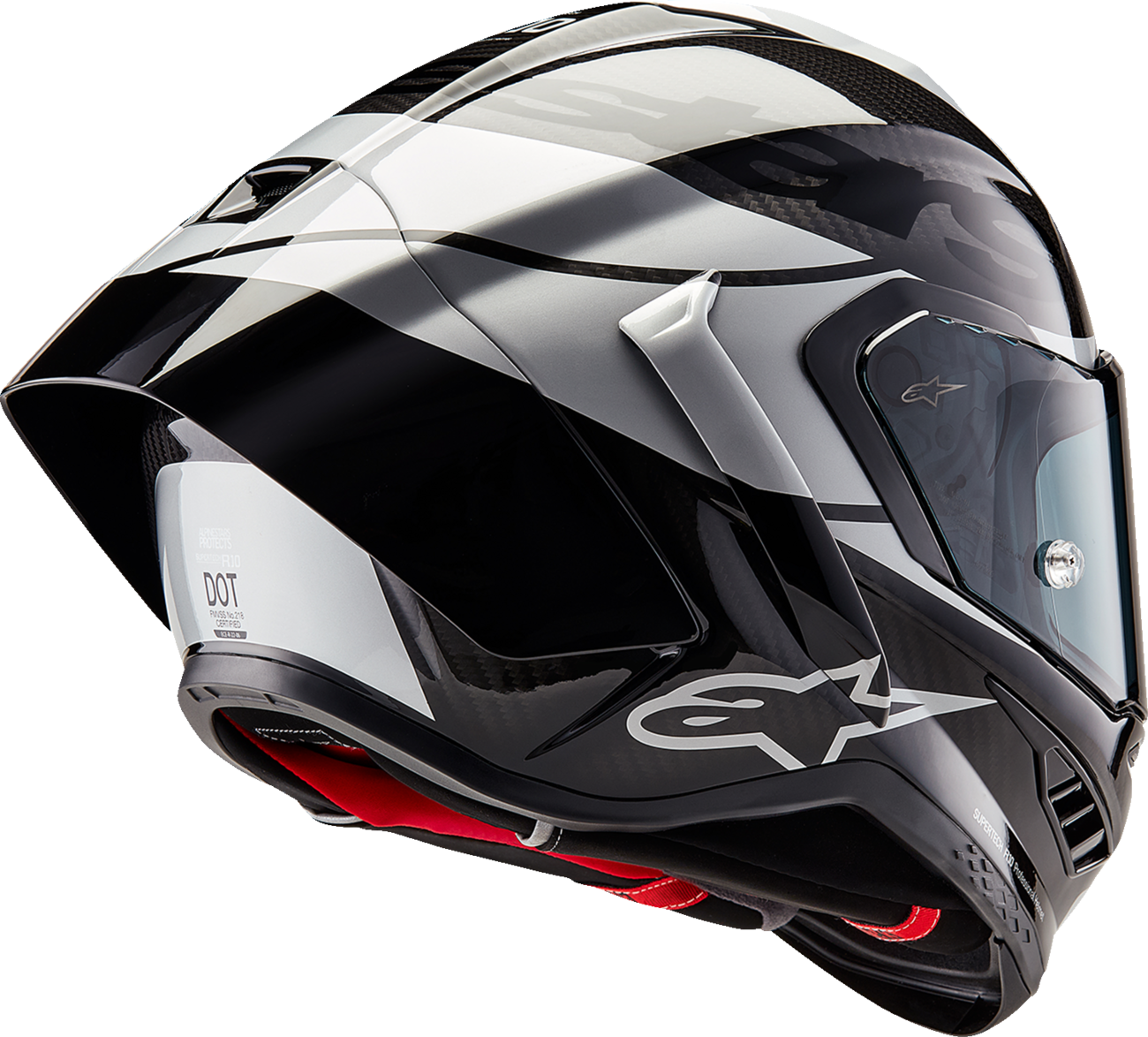

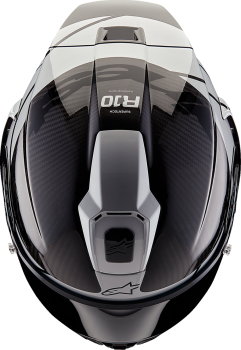

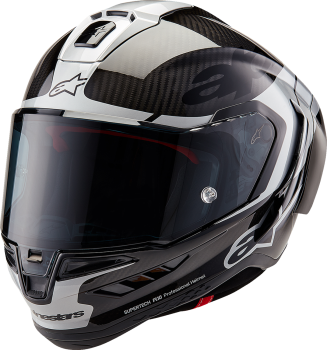

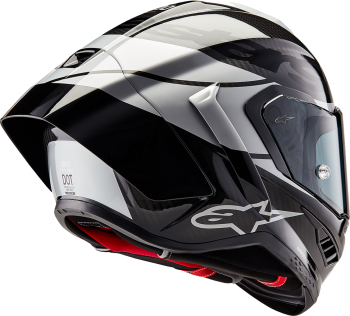

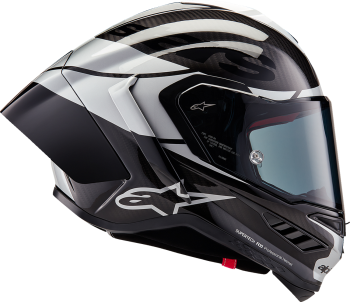

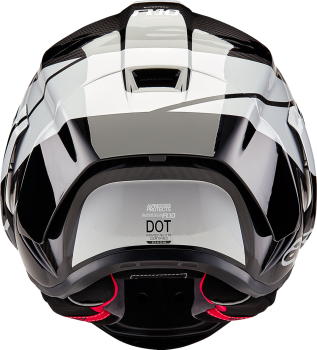

Supertech R10 Element Helmet
Large, Black/Carbon Silver/Black Glossy
Developed over a decade, the Supertech R10 Helmet is Alpinestars’ most advanced motorcycle race helmet for road and track riding. FIM-homologated and ECE 22.06 and DOT certified, its multi-layer carbon shell, eight-piece multi-density EPS, and low-friction liner were MotoGP-validated, exceeding ECE 22.06 by 37% (linear) and 65% (rotational). A-Head Fitment System, dual spoilers, and eleven-vent cooling deliver personalized comfort, high-speed stability, and clear focus with reduced fatigue.
Includes two shields (clear and dark smoke), race and road spoilers, Pinlock 120XLT lens, tear-offs, wind and breath deflectors, and helmet bag.
protection
- Lightweight design (1,540 g in size M) limits inertial loading on the head and neck, helping reduce forces transmitted during an impact.
- Shell structure engineered for controlled deflection and high energy dispersion to resist impact and penetration; certified to ECE 22.06, DOT, and FIM standards, with impact performance exceeding baseline requirements by 37% (linear) and 65% (rotational).
- Aerodynamics tuned for high-speed stability to preserve consistent protective coverage; lateral winglets and turbulators manage airflow, while two interchangeable spoilers (Road and Race) use a patented release system designed to detach under extreme loads to help mitigate rotational forces in a crash.
construction
- Multi-layer carbon composite shell: 3K high‑density carbon fiber outer with unidirectional carbon fiber, aramid fiber, and fiberglass layers, epoxy‑resin bonded and cured for a lightweight, rigid monocoque; approx. 1,540 g (size M).
- Shell layup orientation: strategically oriented fiber plies with controlled shell thickness zones for managed shell deflection characteristics and structural integrity.
- A-Head fitment system: internal crown interface allowing height and angle adjustment via integrated sliders and pad stacking architecture.
- Aerodynamic assembly: interchangeable rear spoilers (Road and Race) with patented break‑away mounts, integrated lateral winglets, and molded surface turbulators developed from CFD and wind‑tunnel data.
- Ventilation architecture: 11‑port system with 7 intakes (3 chin, 4 top) and 4 exhausts; internal EPS channels and shell ducting to route airflow through the helmet structure.
- Shield system: Optical Class 1 visor with anti‑fog and anti‑scratch coatings, metal center locking latch, tool‑less quick‑release side mechanism, Pinlock‑ready with tear‑off posts.
- Impact liner architecture: eight‑piece, multi‑density Expanded Polystyrene (EPS) liner employing six specific densities, with a polished inner surface and low‑friction coating; chin bar features an extended Expanded Polypropylene (EPP) liner covered by a flexible rubber compound.
Key Features:
- MotoGP-developed design: decade-long testing with elite racers delivers pro-level performance confidence on track and road.
- Aero-acoustic optimization: reduced wind noise and turbulence helps minimize rider fatigue during high-speed or long-distance rides.
- Panoramic eyeport: wide lateral and vertical visibility enhances peripheral awareness in tuck or upright positions for quicker line choices.
- Emergency Release System: quick-removal cheek pads enable safer, faster helmet extraction by medical personnel after a crash.
